Introduction: The Essence of Heat Treatment

A concisemetal heat treatment definitionis this: a controlled process of heating, holding, and cooling solid metals to alter their internal microstructure and thereby change their physical and mechanical properties, without changing the overall shape or dimensions of the part. Unlike casting, forging, or machining, heat treatment does not reshape the metal—it transforms its inner structure. Through this process, hard metals can be softened, soft metals can be hardened, brittle materials gain toughness, and tough materials acquire greater strength.

The applications are ubiquitous. From everyday knives, axes, and saw blades to automotive crankshafts, camshafts, gears, and bearings, and further to aerospace turbine blades, landing gears, and fasteners—virtually every critical metallic component relies on some form of heat treatment to achieve the performance required for its service life.

I. The Fundamental Steps of the Metal Heat Treatment Process

Every metal heat treatment process consists of three essential stages: heating, soaking (holding), and cooling. These steps are interdependent; a deviation in any one of them can cause significant differences in the final properties.

Heating is the first operation. The metal is raised to a specific temperature, determined by its chemical composition and the desired microstructure. During heating, exposure to air can cause oxidation and decarburization, so modern heat treatment is often carried out in controlled atmospheres or vacuum furnaces.

Soaking (holding) ensures that the entire cross‑section of the workpiece reaches a uniform temperature, allowing the phase transformations to occur simultaneously throughout the part. The soaking time depends on the size, shape, and thermal conductivity of the material.

Cooling is the most critical step for determining final performance. Cooling rates range from slow (furnace cooling) to moderate (air cooling) to fast (oil or water quenching). Each rate produces a distinct microstructure and corresponding mechanical properties.

II. Common Heat Treatment Processes and Their Effects on Metals

  1. Annealing

Metal heat treatment annealinginvolves heating the metal above its upper critical temperature, holding it there for a sufficient time, and thencooling it very slowly—typically in the furnace. Annealing is the opposite of hardening; its purposes include:

· Relieving internal stresses and work‑hardening effects

· Softening the metal to improve plasticity and ductility

· Refining grain size and homogenizing the microstructure

· Improving machinability for subsequent cutting operations

After annealing, the metal undergoes recovery and recrystallisation, internal stresses are released, and the material becomes soft and readily formable or machinable.

  2. Normalising

Normalising is similar to annealing in that the metal is heated above the critical temperature and held, but the key difference lies in the cooling medium: normalising usesstill air, whereas annealing uses furnace cooling. Because the cooling rate is slightly faster, normalising produces a finer and more uniform microstructure than annealing.

Normalising is commonly applied for:

- Pre‑machining treatment of low‑carbon steels

- Final heat treatment for medium‑carbon steels as a substitute for quenching and tempering

- Relieving stresses induced by forging, welding, or heavy machining

- Eliminating network carbides in hypereutectoid steels

Due to its faster cooling, normalising has a shorter production cycle and higher efficiency. Therefore, whenever both annealing and normalising can meet the performance requirements of a part, normalising is preferred for economic reasons.

  3. Case Hardening (Carburising)

Case hardening is the process of enriching the surface layer of a steel part with carbon, nitrogen, or other elements to form a thin, hard alloyed layer. The most common method is carburising—heating low‑carbon steel to 850–950 °C in a carbon‑rich atmosphere, allowing carbon atoms to diffuse into the surface, followed by quenching.

The result is a hard, wear‑resistant surface while the core retains its toughness and impact resistance. Gears, piston pins, bearing rollers, camshafts, and many other components that require both surface durability and core toughness are case‑hardened.

  4. Quenching and Tempering

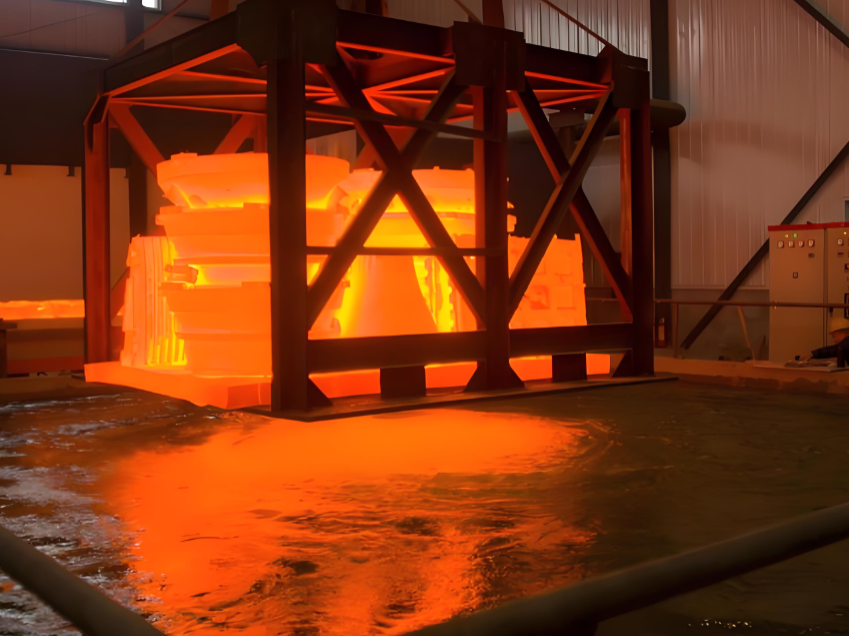

Quenching involves heating the steel above the critical temperature and thencooling rapidly(e.g., in water or oil) to obtain hard and brittle microstructures such as martensite. Quenching can dramatically increase hardness and strength—for example, from about 28 HRC to over 52 HRC. However, quenched parts are highly stressed and brittle, so they are almost alwaystempered—reheated to a temperature below the critical range and cooled—to relieve internal stresses, reduce brittleness, and adjust the final hardness‑toughness balance.

III. Effects of Heat Treatment on Machined Parts

 Heat treating machined parts is a delicate operation. Precision‑machined components have tight dimensional tolerances, and improper heat treatment can cause enough  distortion to scrap expensive parts.

The main effects of heat treatment on machined parts include:

Dimensional changes and distortion– Phase transformations and microstructural rearrangements inevitably cause volume changes and shape alterations. These can be classified into size changes (due to crystal lattice reorientation) and shape warpage.

Residual stress release and redistribution– Machining introduces residual stresses in the surface and subsurface layers. During heating and cooling, these stresses can relax or redistribute, sometimes causing the part to bend or twist.

Surface quality degradation– Without protective atmospheres, heat treatment can lead to oxidation, decarburisation, carburisation, or depletion of alloying elements at the surface.

To address these challenges, modern precision heat treatment increasingly employs vacuum heat treatment technology—heating and cooling in a vacuum environment to eliminate oxidation and decarburisation, and to minimise distortion. Vacuum furnaces enable “precise shape and size control as well as precise micro structure and property control”.

IV. Aircraft Metal Heat Treatment – The Highest Standard

 Aircraft metal heat treatment represents the pinnacle of heat‑treating technology. An aircraft contains tens of thousands of metallic components made from dozens (or even hundreds) of different grades. The demands placed on heat treatment in aerospace far exceed those in general industry:

Wide variety of materials– Aerospace heat treatment covers not only steels but also aluminium alloys, titanium alloys, magnesium alloys, nickel‑based super alloys, precision alloys, and even precious‑metal alloys. Among aluminium alloys, the 2000, 6000, and 7000 series—which are heat‑treatable—are widely used for fuselage skins, wing spars, and structural parts. Titanium alloys, with their high strength‑to‑weight ratio, are employed in engines and air frames. Nickel‑based super alloys (e.g., In conel, 718Plus) are used for turbine blades, casings, and other hot‑section components.

Extremely tight process controls:

· For steel and super alloy parts, the allowable temperature deviation during quenching heating is ≤±10 °C, and for critical parts ≤±5 °C.

· For aluminium alloy parts, the heating temperature deviation must be ≤±5 °C, and for key parts ≤±3 °C.

· Decarburisation depth on important steel parts after heat treatment must be ≤0.075 mm, and complete decarburisation is not permitted.

· Quench transfer time is generally required to be ≤25 seconds, and for some materials even ≤10 seconds.

· For thin‑walled aluminium parts, the transfer time may be as short as 5–7 seconds.

Small batch sizes and high product mix– Unlike automotive production with annual outputs of hundreds of thousands, aerospace heat treatment deals with small batches and many varieties—often only one or two pieces per aircraft, and a “large batch” may be just a few dozen pieces.

Rigorous quality inspection– After aerospace heat treatment, special checks are mandatory, including electrical conductivity tests, over‑heating/over‑burning examinations, and intergranular corrosion tests. Hardness testing is a common acceptance criterion for heat treatment in civil aviation maintenance.

Vacuum heat treatment is widely adopted in aerospace to avoid oxidation and decarburisation, achieving clean, low‑distortion processing. It has become the direction of development for aviation heat treatment.

 Conclusion

Heat treatment is the bridge between materials science and engineering application. From the basic metal heat treatment definition of heating‑soaking‑cooling, through specific processes such as metal heat treatment annealing, normalising, and case hardening, to the distortion control required for heat treating machined parts, and finally to the extreme precision and strict standards of aircraft metal heat treatment—this technology underpins modern manufacturing across all sectors. It is the “inner magic” that changes only the metal’s internal character while leaving its outer form untouched, enabling materials to deliver their full performance potential under the most demanding service conditions.
