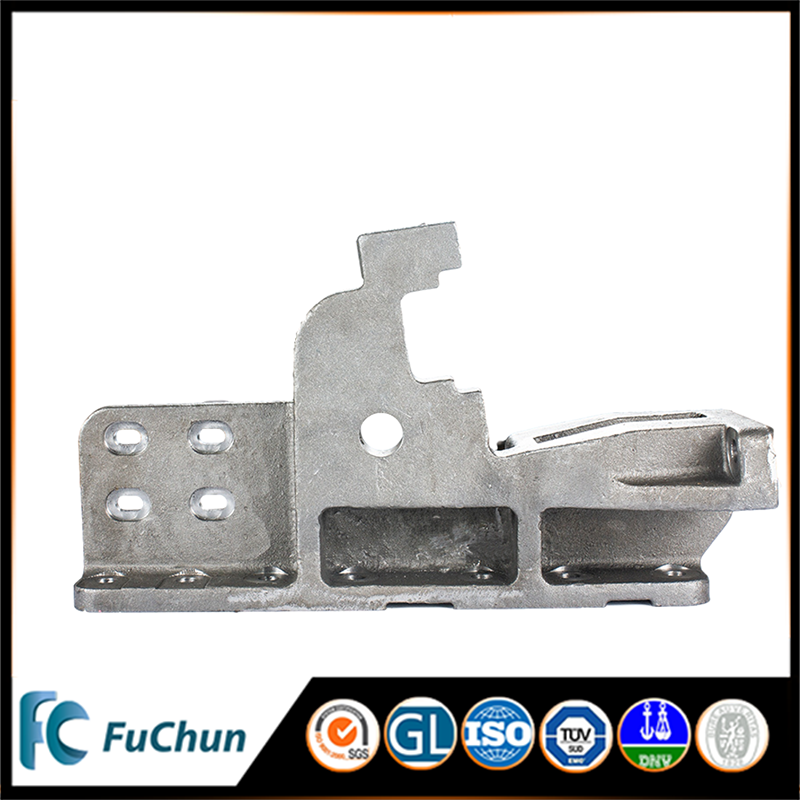

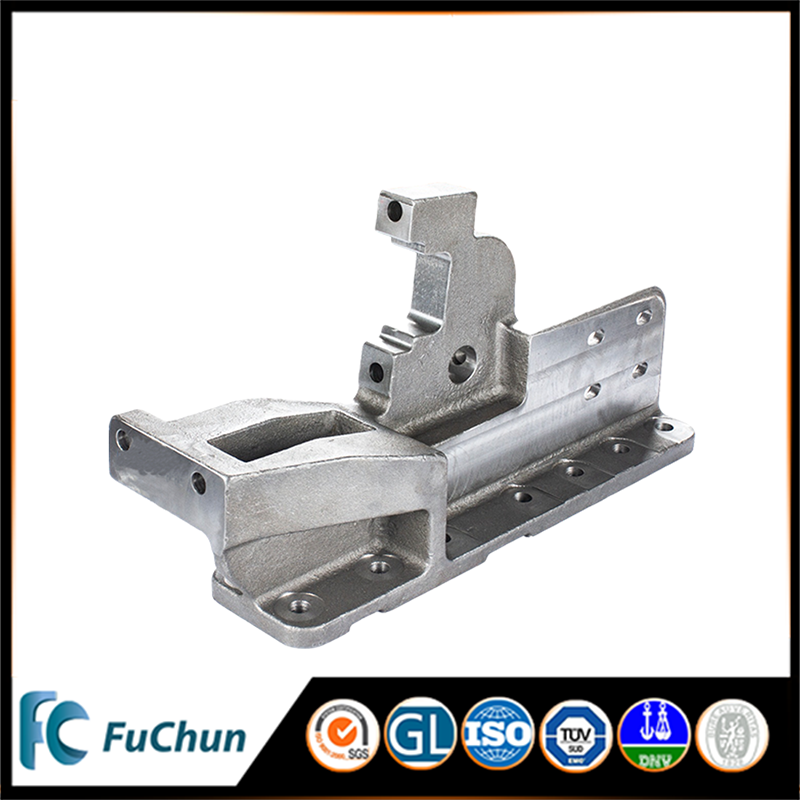

Railway Infrastructure Solutions Custom Alloy Steel Precision Casting for Base Supports

Precision investment casting excels in manufacturing complex railway support components by combining material versatility with exceptional dimensional accuracy.
  • FC Precision Casting

Availability:
Quantity:

Detailed Feature:




Product Name

Railway Infrastructure Solutions Custom Alloy Steel

Precision Casting for Base Supports

Precision Processing

OEM

Tolerance/Precision

CT6~CT8

Product Materials

Iron, Steel, Gray Iron,Nodular Cast Iron (per customer specification)

Process Technology

Precision Casting/Sand casting

Surface Treatment

Machining Or Spay Painting

Size

Customized

Anti-rust

Antirust Oil

File Formats

PDF,Auto CAD, Solid work,JPG,Pro E

FOB Port

Ningbo Or Shanghai



Applications:


Precision investment casting offers unparalleled advantages for manufacturing high-performance railway support components through its unique combination of material flexibility, dimensional accuracy, and production efficiency.


Precision Casting Technological Advantages

1. Complex Geometry Realization
Investment casting produces sophisticated configurations unachievable through conventional machining, including:

  • Internal reinforcement webs and ribs

  • Smooth wall transitions (3-50 mm thickness variations)

  • Integrated mounting features and alignment guides

  • Single-piece construction eliminating welded joints and associated stress concentrations


2. Precision & Consistency Assurance
Advanced ceramic mold technology combined with rigorous process controls ensures:

  • Dimensional Accuracy: CT6-CT8 as per ISO 8062 standards

  • Surface Quality: Ra 3.2-6.3 μm achievable in as-cast condition

  • Production Consistency: Cpk >1.67 maintained through statistical process control

  • Component Interchangeability: Direct replacement capability without post-installation adjustments


3. Batch Production Economics
The process demonstrates exceptional scalability from prototyping to high-volume manufacturing:

  • Pattern Flexibility: Rapid tooling modifications for design iterations

  • Material Efficiency: 95%+ yield rate versus 50-60% with billet machining

  • Economies of Scale: 50-70% cost reduction at volumes exceeding 500 units

  • Predictable Lead Times: Standardized process flows ensuring reliable delivery schedules


Railway Application Engineering Value

Structural Integrity Enhancement

Components are engineered to withstand railway-specific dynamic loading conditions:

  • Impact Load Resistance: Withstands 5g+ shock loads during coupling operations

  • Cyclic Stress Endurance: Designed for 10⁷+ load cycles without crack initiation

  • Environmental Adaptation: Optional coatings and treatments for coastal or industrial atmospheres

  • Temperature Performance: Consistent mechanical properties across operational temperature ranges


System Integration Benefits

  • Weight Optimization: Up to 35% reduction compared to fabricated alternatives

  • Installation Efficiency: Precision-machined interfaces reduce assembly time by 40-60%

  • Maintenance Accessibility: Designed for in-situ inspection and component replacement

  • Regulatory Compliance: Conforms to EN 15085, AAR M-1003, and IRIS certification requirements


Quality Assurance Protocol

Each production batch undergoes comprehensive verification:

  1. Material Certification: Spectrographic analysis with traceable heat numbers

  2. Mechanical Testing: Separately cast test bars for tensile and impact validation

  3. Non-Destructive Examination: 100% magnetic particle inspection + sample radiography

  4. Dimensional Verification: First-article CMM reporting + statistical sampling

  5. Performance Validation: Fatigue and load testing on representative components


Typical Application Scenarios

  • Bogie Systems: Frame reinforcements, bolster support brackets, suspension mounts

  • Carriage Connections: Coupler mounting bases, draft gear support structures

  • Equipment Installation: Traction motor supports, brake reservoir mounting plates

  • Track Interfaces: Rail fastener bases, switch mechanism foundations

  • Infrastructure: Signal equipment pedestals, bridge bearing plates, station equipment supports


By synergizing ductile iron's superior mechanical properties with investment casting's precision manufacturing capabilities, we deliver railway support components that optimize total lifecycle costs while ensuring decades of reliable performance under the most demanding operating conditions. Our solutions bridge the critical gap between structural requirements and manufacturing practicality, providing OEMs and railway operators with components that exceed industry standards for safety, durability, and operational efficiency.

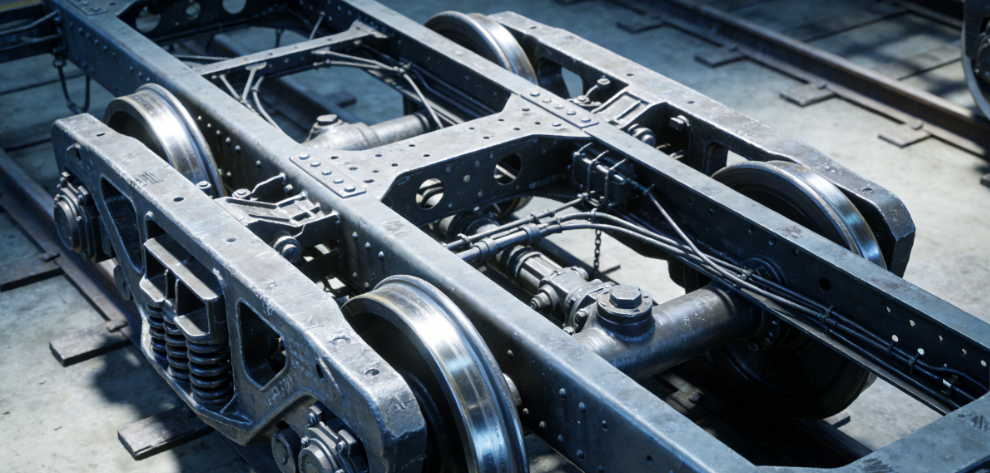

Custom ductile iron investment casting for railway structural supports


Advantages:


★ Professional technical team provides high quality technical supporting;

★ High quality materials can increase service life;

★ Precision control of size makes assembly more reasonable and perform more efficiently.








Ningbo Yinzhou Fuchun Precision Casting Co., Ltd. established in 1988, is located in the dynamic coastal city of Ningbo on China's eastern coast. As a leading foundry in China, we specialize in precision casting of carbon steel, alloy steel, stainless steel, ductile iron, and gray iron. With an annual production capacity exceeding 10,000 metric tons, our expertise covers a wide range of casting weights—from lightweight components of 100 grams to heavy-duty parts up to 600 kilograms.


We serve global clients by manufacturing precision mechanical components according to customer specifications and technical drawings. Our product portfolio is diverse and widely applied across industries, including but not limited to:

  • Valve components for industrial and plumbing systems

  • Critical parts for railway and subway infrastructure

  • Durable components for mining and heavy machinery

  • Automotive fittings and structural elements

  • Hydraulic and engineering machinery parts

  • Customized components for other industrial applications


To ensure precision and quality, our facility is equipped with 7 medium-frequency electric furnaces and supported by a comprehensive suite of advanced inspection and testing equipment. This includes spectrographs for material verification, metallographic analyzers for microstructure examination, hardness testers, ultrasonic flaw detectors, magnetic particle inspection systems, impact testers, and tensile testing machines. Each production stage is closely monitored to deliver castings that meet the highest standards of performance, consistency, and reliability.


testing-machine2.jpg                testing-machine1.jpg


Furthermore, our machining capability is very strong, with a whole line of boring, milling and drilling lathes, 13 CNC lathes, 4 CNC machining centers, and related metallurgical machinery.



Our Services:



❤  Satisfied Quality;

❤  Competitive Price;

❤  Professional Sales & QC Team;

❤  Quick Delivery;

❤  Perfect After-sales Service.


We firmly believe that superior quality and unwavering integrity are the foundation for earning customer trust and building lasting partnerships. We are eager to explore opportunities to work with you and develop a collaborative relationship that delivers mutual value and growth.

If you would like to learn more about our products or capabilities, please don't hesitate to reach out.

Our team is ready to provide detailed information, technical specifications, or customized solutions to meet your needs.





Ningbo Yinzhou Fuchun Precision Casting Co., Ltd. is deeply committed to quality as the cornerstone of our operations. Our comprehensive quality control system spans every stage of production, from raw material inspection to final shipment, ensuring that each casting meets the highest standards of precision, durability, and performance. This dedication is validated by our certifications, including ISO9001, TUV-PED,DNV-GL and BV approvals, which reflect our adherence to international quality and safety norms.


Our global reach speaks to the trust we have earned: approximately 80% of our output is exported to discerning markets in Europe, the USA, and Australia. These long-term partnerships are built on consistent reliability, timely delivery, and responsive collaboration. We are proud not just to meet specifications, but to exceed expectations—turning quality assurance into a foundation for lasting growth, together with our customers worldwide.



Certification Display:




Packaging Display:


  1. Wooden Case Packaging:

    Heavy-duty wooden boxes with inner plastic lining for maximum protection of high-value or fragile items during long-haul transport.

  2. Standard Pallet Packaging:

    EUR-size pallets with collars and full plastic wrapping, optimized for efficient handling and warehouse logistics.

  3. Custom Packaging:

    We adapt to your specific requirements — from inner cushioning to special markings — ensuring compliance and safe arrival.


professional-package .jpg


Transport Details:


We manage all aspects of transportation with precision to ensure your order arrives safely and on time.

Our logistics are tailored to your needs, offering flexible solutions via sea, air, or land freight.

Key services include professional packaging, real-time shipment tracking, and full support with customs documentation.

We prioritize clear communication, providing you with schedules and updates at every step.

Our goal is to deliver your products Efficiently, Securely, and Cost-effectively, giving you Complete Peace of mind.
