Casting Process Optimization for Complex Metal Components

Modern industrial equipment often requires metal components with complex geometries, internal cavities, and strict dimensional tolerances. These parts are widely used in automotive systems, hydraulic equipment, pumps, valves, and heavy machinery. Manufacturing such components efficiently and reliably presents significant technical challenges for foundries.

Casting remains one of the most practical manufacturing methods for producing complex metal parts. However, complex designs can increase the risk of defects such as shrinkage, porosity, misruns, or deformation if the casting process is not properly optimized.

To produce high-quality components consistently, casting manufacturers must carefully optimize every stage of the production process—from part design and mold development to pouring control and cooling management. Through proper process optimization, foundries can significantly improve casting accuracy, reduce defects, and increase overall production efficiency.

Challenges in Casting Complex Metal Parts

Complex metal components often contain features that are difficult to manufacture using conventional production methods. These features can include thin walls, deep cavities, curved surfaces, and internal channels.

Such design characteristics can introduce several challenges during casting.

1. Uneven Metal Flow

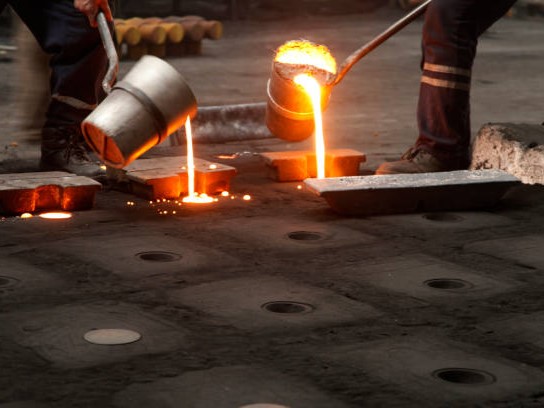

When molten metal enters a mold cavity, it must flow smoothly and completely fill the mold before solidification begins. In complex geometries, metal flow can become restricted or turbulent.

If the metal does not reach all areas of the mold in time, defects such as incomplete filling or cold shuts may occur.

2. Solidification Shrinkage

All metals shrink during solidification. In components with varying wall thicknesses, different areas may cool at different rates. This uneven cooling can cause internal shrinkage cavities or structural weaknesses.

3. Gas Entrapment

Complex mold structures may trap gases during the pouring process. If gases cannot escape properly, porosity defects may form inside the casting.

4. Dimensional Deformation

Complex shapes can also increase the risk of distortion during cooling. Internal stresses created during solidification may cause warping or dimensional deviation.

Because of these challenges, producing complex metal components requires careful casting process optimization.

Key Strategies for Optimizing Casting Processes

Professional foundries apply a variety of engineering strategies to improve the casting of complex components. These methods focus on controlling metal flow, managing cooling behavior, and improving mold design.

1. Optimizing Mold Design

The design of the mold plays a critical role in ensuring successful casting results. Engineers carefully analyze mold structure to ensure proper metal flow and solidification.

Important mold design considerations include:

• Proper gating system layout

• Adequate venting for gas release

• Balanced metal distribution

• Correct riser placement for shrinkage compensation

A well-designed mold ensures that molten metal flows evenly through the cavity while allowing gases to escape and providing additional molten metal to compensate for shrinkage during cooling.

2. Improving Gating and Riser Systems

Gating systems control how molten metal enters the mold, while risers provide extra molten metal to compensate for shrinkage during solidification.

Proper gating design helps prevent turbulence and ensures smooth metal flow. Meanwhile, correctly positioned risers supply additional molten metal to areas that may shrink during cooling.

Typical gating system elements include:

• Sprues

• Runners

• Gates

• Risers

Optimizing the size and location of these elements helps reduce defects and improves overall casting quality.

3. Controlling Cooling and Solidification

Cooling rate control is essential when producing complex metal components. If different sections of a part cool too quickly or unevenly, internal stresses may form.

Foundries use several methods to control cooling behavior.

These include:

• Using chills to accelerate cooling in specific areas

• Adjusting mold materials to influence heat transfer

• Optimizing wall thickness during part design

• Controlling pouring temperature

Carefully managing the cooling process helps ensure that metal solidifies in the correct sequence, reducing the likelihood of shrinkage defects.

The Role of Simulation Technology in Casting Optimization

Modern casting manufacturers increasingly rely on computer simulation tools to optimize casting processes before production begins.

Casting simulation software allows engineers to model how molten metal flows through the mold, how it cools, and where defects might occur.

Simulation technology can analyze:

• Molten metal flow patterns

• Solidification sequences

• Temperature distribution

• Risk areas for shrinkage or porosity

By identifying potential issues early in the design stage, manufacturers can adjust mold design and process parameters before physical production begins.

This approach significantly reduces trial-and-error during manufacturing and improves production efficiency.

Selecting the Right Casting Method for Complex Components

Different casting methods offer different advantages when producing complex metal parts. Choosing the right process is an important part of process optimization.

The following table compares several casting methods commonly used for complex components.

Investment casting and lost foam casting are often preferred when parts require intricate internal features or tight tolerances.

Material Selection for Complex Castings

Material properties also influence the success of casting complex components. Different alloys behave differently during pouring and solidification.

Common materials used for complex castings include:

• Ductile iron

• Gray iron

• Carbon steel

• Alloy steel

• Aluminum alloys

Each material offers unique advantages. For example, ductile iron provides excellent strength and toughness, while aluminum alloys offer lightweight performance.

Selecting the appropriate material helps improve casting reliability and final component performance.

Quality Control in Complex Casting Production

Producing complex metal parts requires strict quality control throughout the manufacturing process. Foundries typically implement multiple inspection procedures to ensure that castings meet design specifications.

Common quality control methods include:

• Visual inspection

• Dimensional measurement

• X-ray testing for internal defects

• Ultrasonic testing

• Mechanical property testing

These inspection techniques help manufacturers identify potential problems early and ensure that components meet industry standards.

Process Optimization and Production Efficiency

Improving casting processes does not only enhance product quality—it also increases manufacturing efficiency.

Optimized casting processes help reduce:

• Scrap rates

• Production delays

• Excessive machining requirements

• Material waste

At the same time, process optimization improves:

• Production stability

• Dimensional accuracy

• Surface quality

• Overall manufacturing consistency

For OEM manufacturers and industrial equipment producers, these improvements translate into more reliable supply chains and lower production costs.

Collaboration Between Engineers and Casting Manufacturers

Producing complex metal components successfully often requires close collaboration between product designers and casting engineers.

Early communication allows casting specialists to provide recommendations regarding:

• Design modifications to improve castability

• Material selection

• Mold design strategies

• Process adjustments

By integrating casting expertise during the design stage, manufacturers can avoid costly design revisions and production issues later in the project.

Conclusion

Manufacturing complex metal components requires more than simply pouring molten metal into molds. It involves careful optimization of mold design, metal flow control, cooling behavior, and process parameters.

Through advanced engineering techniques, simulation technologies, and strict quality control procedures, modern foundries can produce complex cast components with high precision and reliability.

Process optimization not only improves product quality but also enhances production efficiency, making casting an ideal manufacturing solution for industries such as automotive, hydraulic equipment, and industrial machinery.
