What Is Precision Casting?

Have you ever wondered how complex metal parts, like the intricate blades deep inside a jet engine, the delicate framework of a surgical implant, or the elaborate details of a sculpted bronze artwork, are made with such flawless accuracy? The answer lies in a remarkable and ancient-yet-modern manufacturing process known as Precision Casting, most commonly called Investment Casting or the Lost Wax Casting. It is the silent hero behind countless high-performance components that power, heal, and beautify our world.

The Core Principle: From Wax to Metal

At its heart, precision casting is a method for creating metal parts with exceptional dimensional accuracy, complex geometries, and superior surface finishes. Its greatest advantage is the ability to produce "near-net-shape" components—parts that are so close to their final dimensions that they require minimal additional machining. This makes it ideal for shapes that are difficult, expensive, or impossible to achieve through traditional machining or forging, such as parts with internal passages, undercuts, or extremely thin walls.

A Step-by-Step Journey Through the Process

The magic of investment casting unfolds in a series of meticulous steps, blending craftsmanship with advanced engineering:

1. Create the Master Pattern:

It all begins with a precise model, typically injection-molded from a special wax or a soluble material. This pattern is an exact replica, including allowances for metal shrinkage, of the final desired part.

2. Build the Assembly:

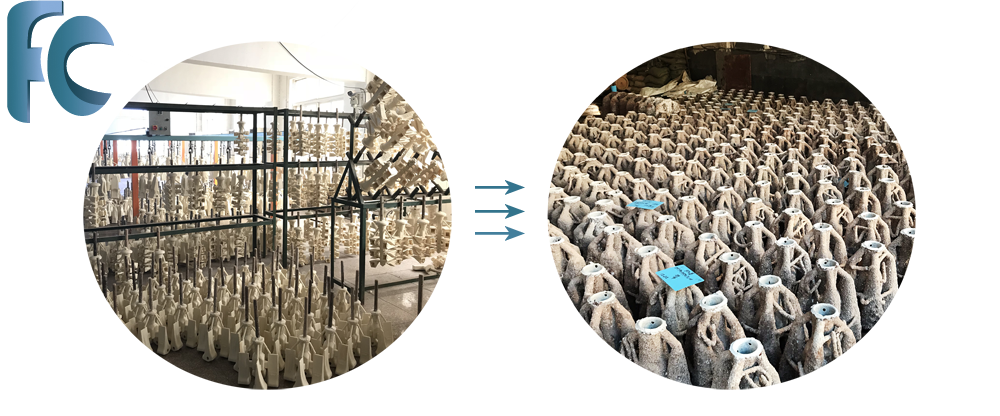

Multiple wax patterns are carefully attached to a central wax sprue, forming a cluster often called a "tree". This allows for the simultaneous casting of several parts in one pour, improving efficiency.

3. Build the Ceramic Shell:

The assembly is repeatedly dipped into a fine ceramic slurry and coated with refractory sand. Each layer is dried, building up a thick, heat-resistant shell around the wax cluster. This step is critical for achieving a smooth surface finish.

4. The "Lost Wax" Moment:

The entire shell is placed in a high-temperature autoclave or furnace. The wax inside melts and drains out completely, leaving behind a perfect, hollow ceramic mold—a negative imprint of the parts.

5. The Casting:

The ceramic mold is preheated to a specific temperature, then molten metal—which can range from stainless steel and superalloys to aluminum, brass, or titanium—is poured into the cavity, often using gravity, vacuum, or centrifugal force to ensure complete filling.

6. The Reveal:

After the metal solidifies and cools, the hard ceramic shell is mechanically broken away or vibrated off in a process called dewaxing. What remains is the metal "tree" with the cast parts attached.

7. Finishing Touches:

The individual castings are cut off from the sprue. They then undergo finishing processes such as grinding, sandblasting, heat treatment, and minor machining to meet exact specifications.

[Image Suggestion: A multi-panel diagram illustrating the key stages: 1) A wax pattern tree, 2) The ceramic shell being dipped, 3) The molten metal being poured into the preheated shell, 4) The final cluster of raw metal castings after shell removal.]

Why Choose Precision Casting? Key Advantages and Applications

The investment casting process offers a unique set of benefits that make it indispensable across advanced industries:

·Design Freedom: Create incredibly complex and intricate geometries that are unattainable by other methods.

·Material Versatility: Works with an enormous range of alloys, including those that are difficult to machine.

·Excellent Surface Finish and Accuracy: Achieves tight tolerances and smooth surfaces, reducing post-processing time and cost.

·Material Integrity: Produces parts with fine, uniform grain structure and enhanced mechanical properties.

These advantages make precision casting the manufacturing method of choice for critical components in:

·Aerospace & Defense: Turbine blades, engine components, structural parts.

·Medical & Dental: Orthopedic implants, surgical instruments, dental prosthetics.

·Automotive & Energy: Turbocharger housings, fuel system parts, valve bodies.

·Industrial & Consumer: Pump and impeller housings, firearm components, jewelry, and art.

Conclusion

From its ancient origins in art to its pivotal role in modern technology, precision casting is the vital link between an engineer's most ambitious design and a durable, high-performance metal reality. It transforms molten metal into complex, high-integrity components with a level of precision that continues to push the boundaries of what is possible in manufacturing.
