In precision casting, superior dimensional accuracy and surface finish do not come from the process alone — they begin with intelligent structural design. Even the most advanced casting technology can suffer from defects, inefficiencies, and high production costs if the part geometry ignores manufacturability principles. A well-designed precision casting must simultaneously satisfy mechanical performance, machining feasibility, and casting process requirements. By optimizing structure at the design stage, manufacturers can reduce defect rates, improve yield, and achieve stable mass production. The following key design elements play a critical role in ensuring successful precision casting outcomes.

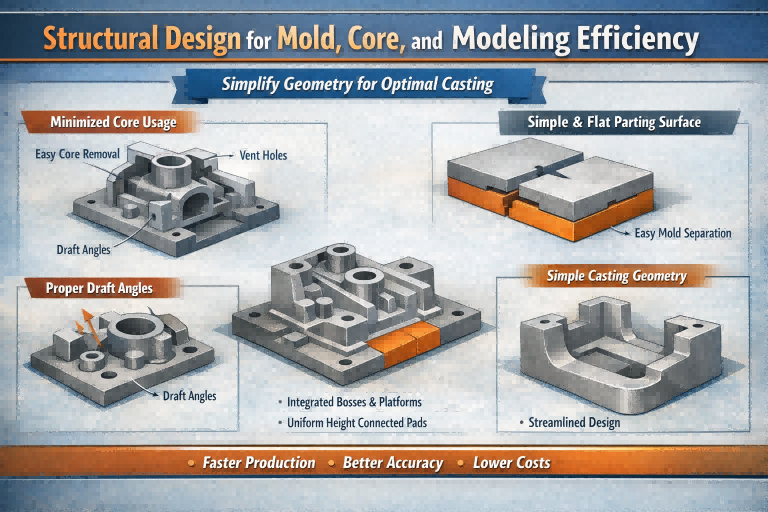

To ensure smooth mold production and stable forming, casting structures should be designed with simplicity and practicality in mind.
Where possible, internal cavities such as those in small mixers or U-shaped mixing equipment should minimize the use of sand cores or avoid them altogether. When cores are unavoidable, they must be easy to position, support, fix, and ventilate to prevent gas entrapment and deformation. Adequate technological holes should be incorporated when necessary to facilitate core setting, removal, and exhaust. Draft angles should be applied to both internal and external surfaces, as well as reinforcing ribs, in the mold opening direction to allow easy demolding and reduce mold damage. Raised features and bosses should not vary excessively in height. Ideally, convex platforms should maintain uniform height and, when positioned close together on the same surface, be connected into an integrated structure to improve metal flow and solidification behavior.
Overall casting geometry should remain as simple as possible to ease mold forming. Flat and straightforward parting surfaces are preferred, as they improve mold accuracy, reduce manufacturing complexity, and lower production costs.
An optimized casting structure plays a major role in preventing common defects such as shrinkage, cracking, porosity, and distortion. Large horizontal surfaces should be avoided whenever possible, as they are prone to shrinkage cavities and uneven solidification. If unavoidable, they should be supported by ribs or redesigned to improve feeding conditions.
Openings or holes located in surface walls should be reinforced with raised edges or localized thickening to maintain strength while preventing excessive wall thickness reduction that may weaken the structure. The overall design should allow for free and uniform contraction during solidification. Complex restraints or rigid interconnections that block shrinkage movement can lead to internal stress, warping, and cracking.
For castings containing internal water channels, gas passages, or layered cavities, connecting columns or support ribs should be added. These not only improve structural strength but also stabilize mold geometry and promote consistent metal flow.
In precision casting, sharp internal and external corners act as natural stress concentrators, significantly increasing the risk of cracking, distortion, and premature component failure. By incorporating generous fillets and smooth radii at all intersections, stress is distributed more evenly throughout the casting structure. This not only enhances mechanical strength but also improves fatigue resistance under cyclic loads, making components more durable in demanding industrial applications. Proper corner design also reduces mold wear and improves dimensional consistency during production.
Smooth transitions and curved surfaces allow molten metal to flow continuously and uniformly through the mold cavity. This minimizes turbulence, air entrapment, and flow interruptions that commonly lead to cold shuts, misruns, inclusions, and surface roughness. Improved metal flow ensures complete cavity filling even in thin or complex sections, resulting in superior surface finish and high dimensional accuracy. Ultimately, well-designed fillets and radii contribute directly to higher yield rates, reduced rework, and premium-quality precision cast components.
Design Aspect | ✅ Good Design Practice | ❌ Poor Design Practice | Impact |
Internal Corners | Rounded fillets | Sharp angles | Crack initiation |
External Edges | Smooth radii | Square edges | Metal turbulence |
Stress Flow | Even load distribution | Stress concentration | Lower fatigue life |
Successful precision casting depends not only on advanced molding techniques but also on how well the part geometry cooperates with the gating and riser system. Casting structures should be designed to guide molten metal smoothly from the sprue through runners and into all mold cavities without turbulence or flow interruption. Proper structural balance allows metal to reach thin sections quickly while maintaining sufficient feeding pressure for thicker regions.
Well-aligned geometry improves riser effectiveness by directing shrinkage toward feeding zones, ensuring that solidification occurs in a controlled and directional manner. This reduces internal porosity, eliminates misruns, and significantly increases casting yield. In production environments, optimized feeding compatibility translates directly into fewer defects, higher output, and more consistent quality.
Hot spots are localized areas where metal solidifies last, making them highly susceptible to shrinkage cavities and internal voids. These typically occur at thick junctions, isolated bosses, and abrupt section transitions. Through intelligent geometric design—such as gradual thickness changes, strategic rib placement, and the integration of connected features—hot spot formation can be minimized or completely eliminated.
By promoting uniform cooling and directional solidification toward risers, smart structural design ensures a dense, defect-free internal structure. This not only improves mechanical strength and pressure tightness but also dramatically reduces scrap rates, rework costs, and production delays.
Superior precision casting quality begins with intelligent structural design. Even the most advanced casting processes depend on geometry that supports manufacturability, mechanical performance, and efficient production. By optimizing structure at the design stage, manufacturers can significantly reduce defects, improve yield, and achieve consistent mass production.
Effective casting design prioritizes simple, mold-friendly geometries that minimize core usage, incorporate proper draft angles, balance raised features, and maintain clean parting surfaces. These measures streamline mold production while enhancing dimensional accuracy.
Structural optimization also plays a vital role in defect prevention. Avoiding large flat surfaces, reinforcing openings, allowing free solidification shrinkage, and stabilizing internal cavities with support ribs help eliminate shrinkage, cracking, porosity, and distortion.
The use of proper fillets and radii further strengthens castings by reducing stress concentration and improving metal flow. Smooth transitions promote uniform filling, superior surface finish, and higher fatigue resistance.
Finally, compatibility with gating and feeding systems ensures controlled solidification and efficient shrinkage compensation. Smart geometry minimizes hot spots, enhances riser effectiveness, and produces dense, defect-free structures with higher production yields.
Together, these design elements form the foundation of high-quality, cost-effective precision casting solutions.
