Shell molding, also known as shell mold casting or the Croning process (named after German engineer Johannes Croning who invented it in the 1940s), is a precision metal casting method. It belongs to the family of sand casting processes but differs significantly from traditional green sand casting. Instead of using moist, loose sand to form a thick mold, shell molding employs a thin, rigid “shell” made of fine silica sand coated with a thermosetting resin. This shell is created by applying the resin-sand mixture onto a heated metal pattern. The heat partially cures the resin, forming a hard, shell-like mold half. Two such halves are then joined together to create a complete mold cavity for pouring molten metal. In essence, shell molding means using a resin-bonded, thin-walled sand shell as the mold, which offers superior surface finish and dimensional accuracy compared to conventional sand casting.
Shell mold casting is highly versatile and works with a wide range of metals. The most commonly used materials include:
Cast iron (gray and ductile)
Carbon steel, alloy steel, and stainless steel
Aluminum alloys
Copper alloys (e.g., bronze, brass)
A sizable amount of castings in the steel industry are produced by the shell molding process because it ensures better profitability, especially for medium to high volume production runs. Typical industrial parts manufactured using shell mold casting include cylinder heads, gears, bushings, connecting rods, camshafts, and valve bodies.
The six-step shell molding process
Creating a shell mold follows a precise sequence:
Fine silica sand coated with a thin layer (3–6%) of thermosetting phenolic resin and a liquid catalyst is dumped, blown, or shot onto a metal pattern. The pattern is typically made of cast iron and preheated to 230–315 °C (450–600 °F). The sand sits on the pattern for a short time (usually seconds to a few minutes) to allow partial curing.
The pattern and the partially cured sand are inverted. The loose, uncured sand falls away, leaving only the hardened “shell” attached to the pattern. Shell thickness ranges from 10 to 20 mm (0.4–0.8 in), depending on heating time and temperature.
The pattern with its attached shell is placed in an oven to complete the curing reaction. After this step, the shell achieves a tensile strength of 350–450 psi (2.4–3.1 MPa), becoming rigid and durable.
The fully hardened shell is mechanically stripped from the pattern using ejector pins. This produces one half of the mold.

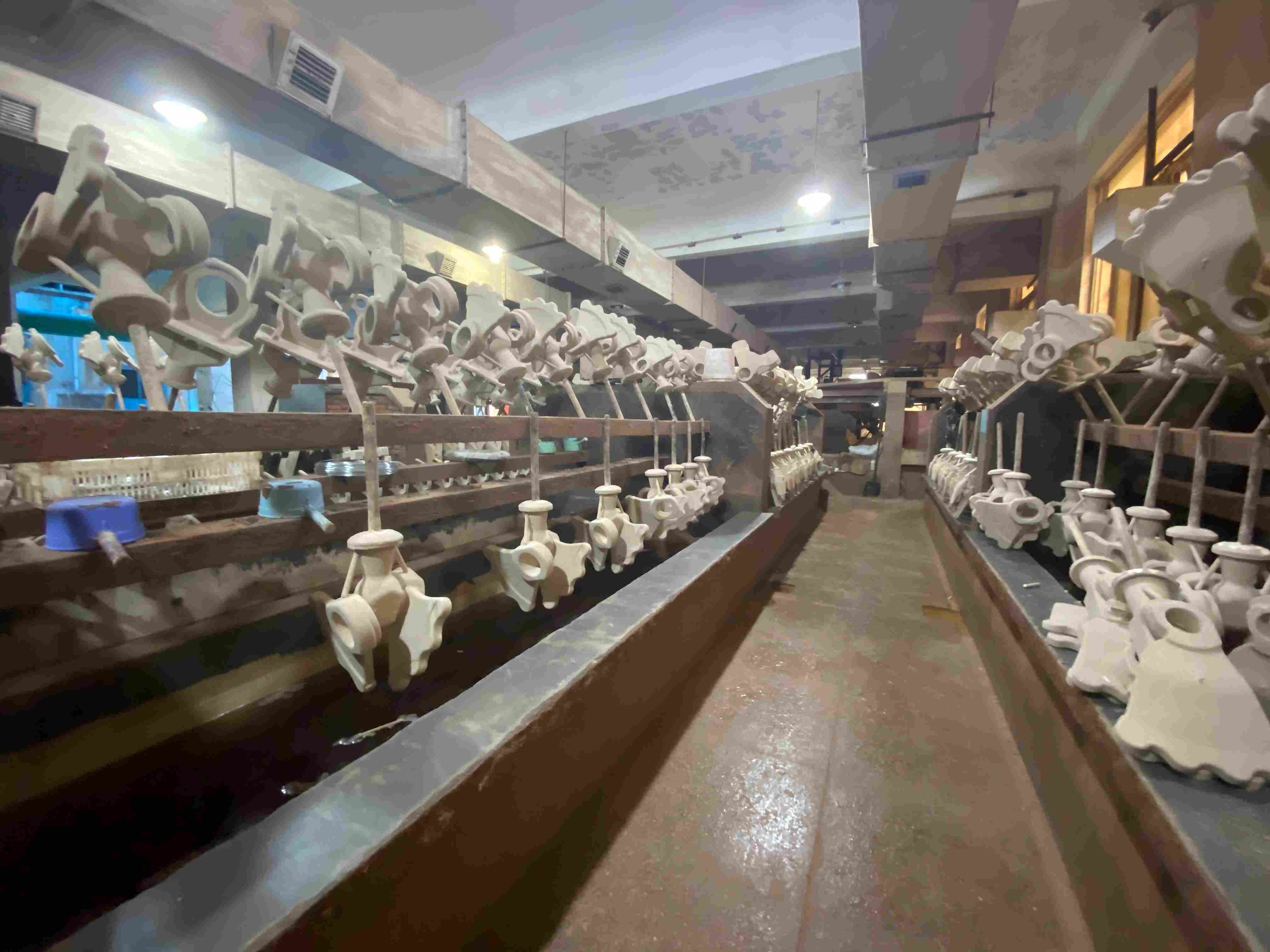

Two or more shell halves are joined together by clamping or gluing with a thermoset adhesive. If internal cavities are required, cores can be inserted at this stage. The finished mold can be used immediately or stored almost indefinitely under dry conditions.

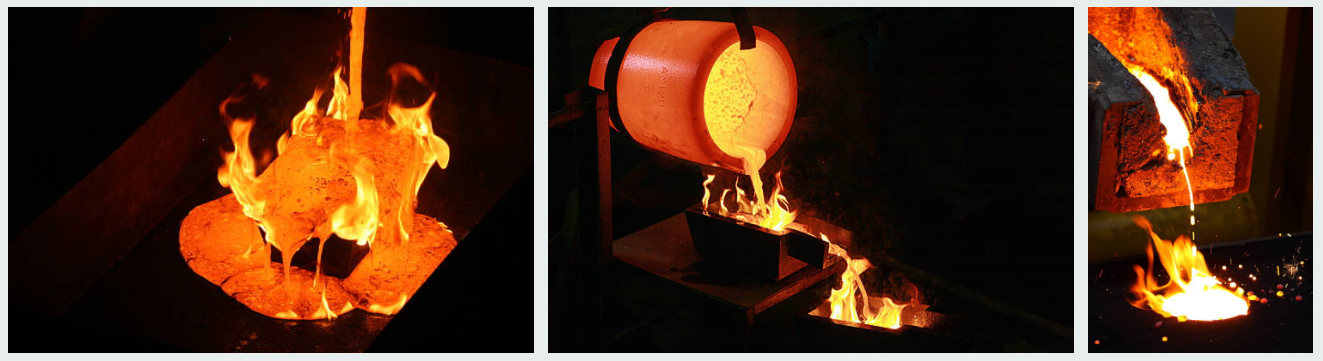

For casting, the assembled shell mold is placed inside a flask (a metal frame) and surrounded with backing materials such as steel shot, sand, or gravel. This reinforcement prevents the thin shell from cracking under the pressure of molten metal. Metal is then poured, allowed to solidify, and the shell is broken away to reveal the final casting.
Compared to other metal casting techniques, shell molding offers several clear benefits:
Minimal finishing required – Castings have a smooth surface finish (typically 125–250 μin), reducing or eliminating grinding and polishing.
High dimensional accuracy – Tolerances of ±0.010 in (±0.25 mm) are achievable, which often replaces machining operations.
Lower per-part costs for volume production – Although the initial pattern and equipment are more expensive than green sand casting, the overall process is faster, requires less labor for finishing, and reduces scrap, making it cost-effective for medium to large runs.
Good mold storage life – Completed shell molds can be stored for long periods without degradation, offering flexible production scheduling.
Shell molding is a precision casting process that means creating a thin, resin-bonded sand shell around a heated pattern, then assembling two shells to form a mold. It delivers high-quality castings with excellent surface finish and dimensional accuracy, making it a preferred method in the steel industry and for producing intricate metal components like gears, camshafts, and valve bodies. While setup costs are higher than simple sand casting, the reduced finishing work and repeatability often lead to lower overall costs per part.
