What Needs To Be Noted for Precision Casting?

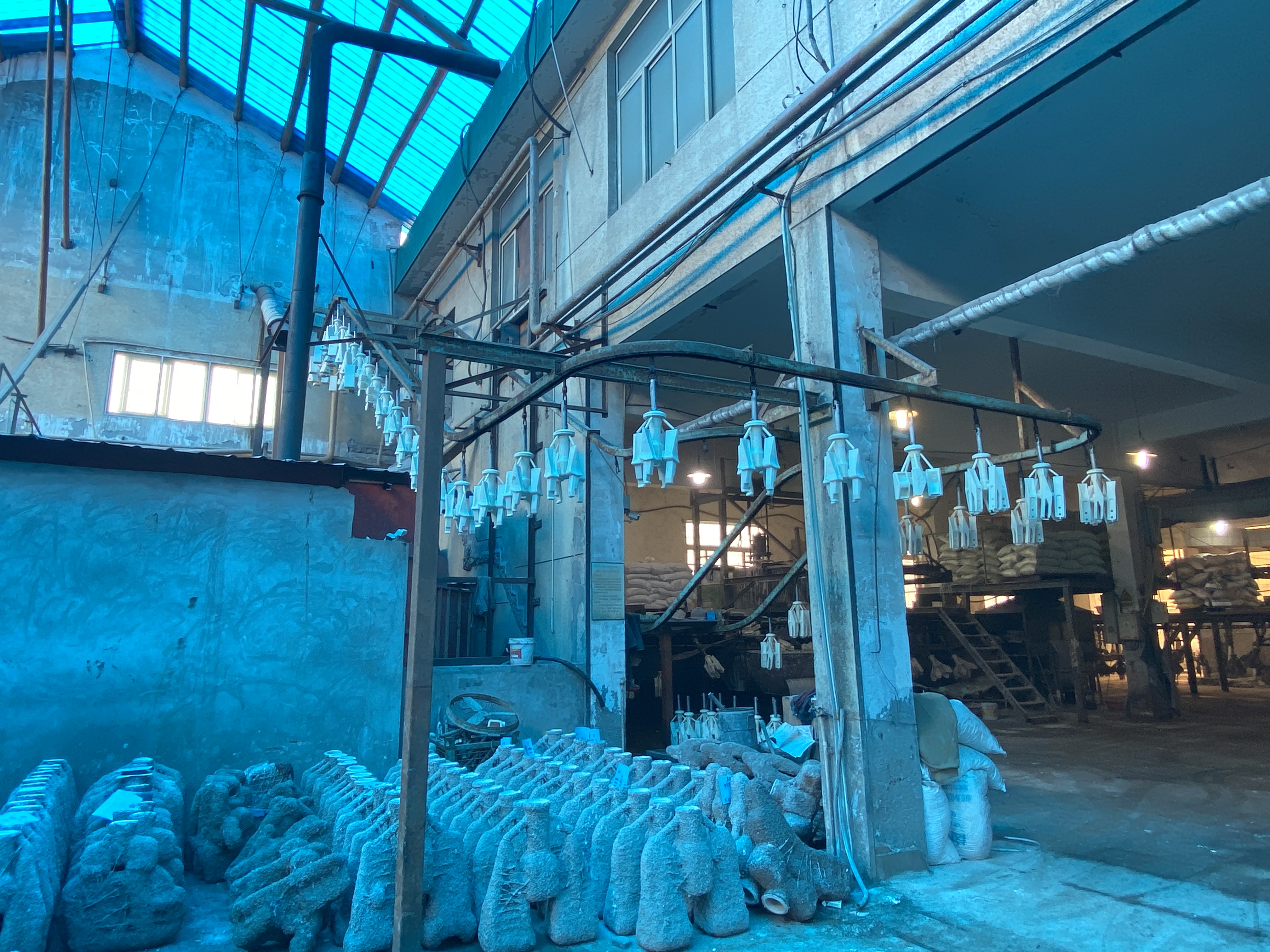

Precision casting is a casting process with less cutting or no cutting, which is an excellent technology in the casting industry. Its application is very wide, not only applicable to various types and kinds of alloy casting, but also capable of producing casting dimensional accuracy and surface quality higher than other casting methods. Even for complex, high-temperature resistant, and difficult-to-machine castings that other casting methods struggle to produce, precision casting can be used. So what does precision casting need to notice? This article summarizes key considerations from both theoretical and practical perspectives, integrating insights from experienced precision casting manufacturer practices and the growing influence of precision casting china in global supply chains.

The following points to be shared in precision casting are as follows:

1. Preventing Chilling and Optimizing Corner Design

To prevent the precision casting from chilling (rapid localized solidification that can cause internal stress and cracks), besides taking measures from the process perspective—such as adjusting pouring temperature and mold preheating—it is essential to avoid excessively thin wall thickness. Some data points out that when the wall thickness exceeds 15 mm, the corners of castings produced with a metal mold must be designed with rounded corners. Sharp corners act as stress concentrators and accelerate heat dissipation, leading to chilling defects. For investment precision casting, which uses ceramic shells instead of metal molds, chilling is less severe, but rounded corners still improve melt flow and reduce turbulence, thereby enhancing the quality of precision casting products.

2. Increasing Casting Slant (Draft Angle)

Since metal molds and cores in precision casting do not allow significant deformation or flexibility—unlike sand molds—the casting slant (draft angle) of precision casting should be larger than that of sand casting. Specifically, the draft angle should be increased by 30% to 50% compared to sand casting. This facilitates smooth ejection of the casting from the mold without damaging the surface or the mold cavity. For precision casting china manufacturers, who often produce high-volume, high-precision components for automotive and aerospace sectors, controlling draft angle is critical to balancing dimensional accuracy and production efficiency. Investment precision casting, due to its wax pattern and ceramic shell process, also requires careful draft design to prevent pattern distortion during wax removal.

3. Managing Wall Thickness Ratios Between Inner and Outer Walls

The thickness of the inner wall and inner rib of a precision casting should be 0.6 to 0.7 times the thickness of the outer wall. If this ratio is not maintained, the casting is prone to cracking between the inner and outer walls. The reason is that the inner wall cools more slowly due to poorer heat dissipation compared to the outer wall, which is in direct contact with the mold or environment. This uneven cooling generates tensile stresses that can lead to hot tears. For complex precision casting products such as turbine blades or pump housings, experienced precision casting manufacturer often use simulation software to predict cooling gradients and adjust wall thickness ratios accordingly. In investment precision casting, the ceramic shell’s insulating properties can slow cooling further, making this ratio even more critical.

4. Adjusting Minimum Wall Thickness for Metal Mold Casting

Because metal dissipates heat rapidly, the minimum wall thickness for precision casting using metal molds should be larger than that for sand casting. Sand molds have lower thermal conductivity, allowing thinner walls to solidify without premature freezing. In contrast, metal molds (or chill molds) extract heat so quickly that thin sections may solidify before the cavity is completely filled, resulting in misruns or cold shuts. A general rule is to increase the minimum wall thickness by 20–30% over sand casting recommendations. However, for investment precision casting (which uses a ceramic shell rather than a metal mold), the shell’s lower thermal conductivity allows thinner walls—sometimes as thin as 0.5 mm for small components. Thus, the specific process must be considered. Precision casting china suppliers have pioneered hybrid approaches, combining metal molds for high thermal conductivity in thick sections and ceramic shells for thin-walled features.

5. Controlling Pouring System and Gating Design

Proper gating design is essential to avoid turbulence, oxide inclusion, and shrinkage porosity. For precision casting, especially investment precision casting, the gating system should be designed to ensure laminar filling. Use of ceramic filters and optimized runner cross-sections can reduce defects. Additionally, the pouring temperature must be carefully controlled—too high increases oxidation and grain growth, too low causes incomplete filling. Many precision casting manufacturer now employ real-time thermal monitoring to maintain optimal pouring parameters.

6. Heat Treatment and Post-Casting Operations

Precision casting often requires post-casting heat treatment to relieve residual stresses, homogenize microstructure, and achieve desired mechanical properties. However, rapid heating or cooling during heat treatment can introduce distortion, especially for thin-walled precision casting products. It is recommended to use controlled atmosphere furnaces and slow ramping rates. Furthermore, surface finishing methods such as shot blasting, grinding, or chemical milling should be planned to remove the ceramic shell (for investment precision casting) without damaging the base metal. Precision casting china facilities have increasingly adopted automated post-processing lines to ensure consistency.

7. Quality Inspection and Dimensional Verification

Given the high dimensional accuracy claimed by precision casting, rigorous inspection is non-negotiable. Techniques such as coordinate measuring machines (CMM), 3D scanning, and X-ray radiography should be employed to detect internal defects like porosity or inclusions. For investment precision casting, the wax pattern itself should be inspected before shell building, as any pattern defect will transfer to the final casting. Reputable precision casting manufacturer integrate statistical process control (SPC) and real-time defect tracking to maintain yields above 95% for critical applications.

Conclusion

Precision casting offers unparalleled advantages in producing complex, high-integrity components with minimal machining. However, success depends on adhering to well-established design and process guidelines—from controlling chilling and draft angles to managing wall thickness ratios and gating systems. Whether you are sourcing from a precision casting manufacturer or exploring precision casting china for cost-effective solutions, understanding these nuances ensures that your precision casting products meet performance and reliability targets. For processes like investment precision casting, additional considerations around ceramic shell behavior and pattern quality come into play. By following the points above, manufacturers can minimize defects, reduce rework, and fully leverage the potential of precision casting technology.
