What Is The Process of Precision Casting Wax Molds?

Precision casting, also known as investment casting, relies on high‑quality wax molds to produce intricate metal components with tight tolerances. The wax mold is the direct predecessor of the ceramic shell and ultimately the final precision casting product. Understanding the entire process of precision casting wax molds is essential for any Precision Casting Supplier aiming to deliver defect‑free precision casting products. This article explains the complete workflow, from wax preparation to final inspection, with special focus on repair operations and quality control–practices widely adopted by leading precision casting China manufacturers.

1. Overview of the Wax Mold Manufacturing Process

The process of precision casting begins with wax formulation. A blend of paraffin, stearic acid, and polymeric additives is melted and conditioned to precise temperature and viscosity. Next, wax injection takes place: the molten wax is forced into an aluminum or steel die under controlled pressure and holding time. After injection, the die is cooled (either by air or water circulation) to solidify the wax. Once cooled, the die opens and the wax pattern is ejected. At this stage, the raw wax mold already possesses the general shape, but it inevitably carries flash, parting lines, surface imperfections, and sometimes minor dimensional deviations. These must be corrected through skilled manual repair–a critical step that directly affects the final quality of precision casting products.

2. Process Operation–Repair and Finishing

When repairing any kind of precision casting wax molds, the waxing personnel first clearly identify which specific areas require correction–whether it be parting‑line flash, surface sinks, bubbles, or flow marks.

Inspection prior to repair

Each wax model is carefully checked for defects such as bubbles (entrapped air), indentations (shrinkage or ejector‑pin marks), deformation (warpage), and incomplete filling. If any systematic problem is detected–for example, repeated bubbles in the same cavity–the operator must promptly inform the paraffin injection supervisor so that process parameters (temperature, pressure, dwell time) can be adjusted. This early warning prevents the entire batch from becoming scrap, saving both material and labour.

Removal of flash and parting‑line residue

The most common repair operation is flash removal. Using a sharp blade, the operator gently slides the cutting edge along the wax model’s contour, carefully shaving off excess material from the parting line. For flashes on both sides, the recommended technique is to peel horizontally and then vertically, employing an oblique cutting motion to avoid gouging the surface. The blade must never dig into the wax model itself; only the unwanted fins are removed. For very thin, minor flash, a soft lint‑free cloth may be used to rub it away without any cutting tool.

Cavity and concave surface restoration

Some wax models have large, narrow recesses or undercuts that may be under filled. In such cases, the operator applies a special repair wax- a softer, more adhesive wax–to build up the missing volume. The repair wax is then smoothed and shaped to match the original geometry, ensuring that the final casting will have the correct profile.

Bubble elimination

All visible surface bubbles must be broken open with a pointed tool. The cavity left by the burst bubble is filled with repair wax, pressed firmly, and scraped flush with the surrounding surface. The repaired area is then checked for contour accuracy; no protruding or concave spots are tolerated.

Flow mark treatment

For cosmetic surfaces or areas that will be machined later, flow marks (slight ripples from non‑uniform filling) can be wiped gently with petroleum jelly. This softens the wax just enough to blend the marks into the background. However, extreme care is taken not to over‑wipe, which might distort fine details.

Final cleaning and placement

After all repairs are completed, the finished wax model is blown clean with an air gun to remove dust and loose wax particles. According to process requirements, the models are placed in flat plates in an orderly manner, with proper spacing to prevent touching and deformation. Each plate is labelled with the batch number and operator badge for traceability.

3. Key Precautions in Wax Mold Repair

To maintain consistent quality across all precision casting products, the following precautions must be strictly observed:

1. Defect identification–All surface defects, including residual flash, parting‑line remnants, and any unusual marks, must be completely removed. The repaired surface should be smooth and faithful to the original CAD profile.

2. Dimensional and shape verification–After repair, each wax mold is measured against the process specification sheet using callipers, gauges, or optical comparators. Critical dimensions (such as wall thickness, hole positions, and datum planes) are checked to ensure they fall within tolerance.

3. No damage to the wax model–The blade or repair tool must never cut into the base wax. Any accidental nick renders the model scrap. Operators are trained to use a light, controlled touch.

4. Workstation cleanliness–The repair table and surrounding area must be kept clean and free of dust, wax chips, or debris. Wax models are placed on dedicated plates; they are never stacked or dropped.

5. Traceability marking–Each operator must legibly mark their badge number or identification code on the plate label at the scheduled time. This ensures that any quality issue can be traced back to the responsible workstation and shift.

4. Beyond Repair–The Complete Process Chain

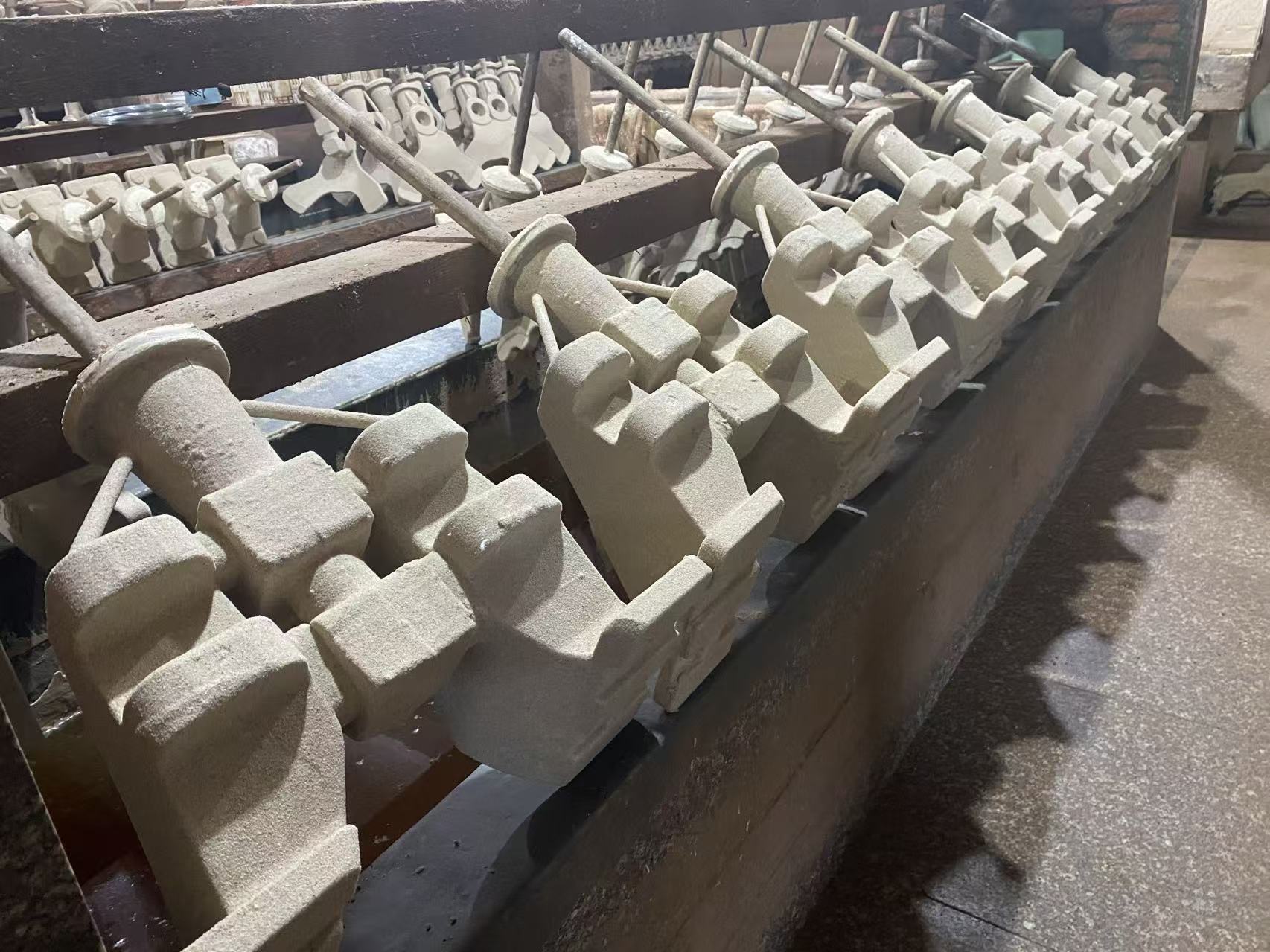

Repair is only one phase of the process of precision casting. After the wax molds pass inspection, they are assembled into trees (clusters), dipped in ceramic slurry, stuccoed with refractory sand, and dried repeatedly to build a robust shell. The shell is then dewaxed (steam autoclave or flash‑fire), fired, and poured with molten metal. Finally, the castings are knocked out, cut off, and finished. Throughout this entire chain, the quality of the wax mold directly influences the surface finish, dimensional accuracy, and yield of the final precision casting products.

The Role of Precision Casting China Suppliers

China has become a global hub for investment casting, and many Precision Casting Supplier companies in China have mastered the wax-mold repair techniques described above. They combine skilled manual craftsmanship with advanced injection equipment and stringent inspection protocols. By consistently delivering high‑quality wax molds, these suppliers ensure that their precision casting products meet international standards for automotive, aerospace, medical, and industrial applications. Whether you are sourcing from a Precision Casting China factory or a local vendor, understanding the wax-mold process especially the repair and precautionary steps is the key to evaluating their capability and reliability.

In summary, the process of precision casting wax molds is a blend of science and art: from injection parameters to hand-finishing, every step demands attention to detail. Proper repair operations eliminate defects, while strict adherence to precautions guarantees repeatability. For any Precision Casting Supplier, mastering this process is not optional-it is the foundation of producing premium precision casting products that satisfy the most demanding customers worldwide.
